Description:The SLG46537V/M provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macro cells of the SLG46537V/M. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.
Renesas provides a recommended PCB layout guide in their application note AN-1154, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The SLG46537V has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to connect an external resistor (R_OC) between the OC pin and GND, and set the overcurrent threshold using the I2C interface. Refer to the datasheet and application notes for more details.
The SLG46537V can operate up to 100 MHz, but the maximum frequency depends on the specific application and PCB layout. It's recommended to consult with Renesas support or a qualified engineer to determine the optimal operating frequency for your specific design.
The SLG46537V has multiple power modes, including low-power mode. To configure low-power mode, you need to use the I2C interface to set the power mode register (PMR) to the desired value. Refer to the datasheet and application notes for more details on power mode configuration.
Renesas recommends using a decoupling capacitor with a value of 1-10 uF, depending on the specific application and operating frequency. A higher value capacitor can help reduce noise and improve overall system stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG46537V Overview

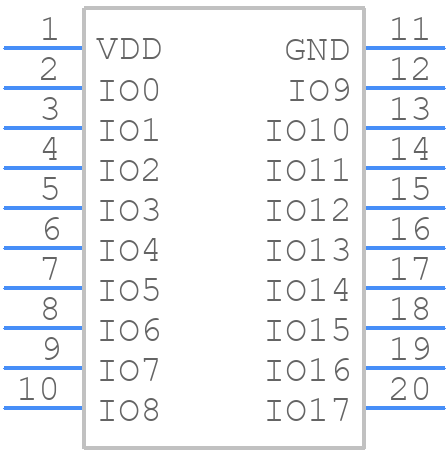

Use the download button to access the SLG46537V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG46,
or try a keyword search, such as Programmable Logic Devices
