SLG46538V - Renesas Electronics

Description: The SLG46538 provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macro cells of the SLG46538. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit. The additional power supply (VDD2) on the SLG46538 provides the ability to interface two i

Download SLG46538V Model
Schematic

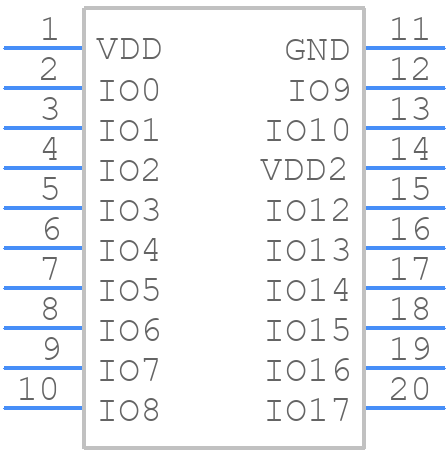

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLG46538V - Renesas Electronics PCB footprint - Other - Other - SLG46538V-3
click to zoom
3D Models
SLG46538V - Renesas Electronics  - 3D model - Other - SLG46538V-3
click to zoom

SLG46538V Details

  • Manufacturer Part Number:

    SLG46538V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    1

  • Programmable Logic Type:

    OT PLD

SLG46538V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1155, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The SLG46538V has a built-in overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry, such as a sense resistor and a comparator, to provide additional protection and flexibility. Renesas provides an example circuit in their application note AN-1154.
  • Renesas recommends a specific power-up sequence to ensure proper device operation. The sequence is: 1) Power up VCC, 2) Power up VDD, and 3) Apply input signals. This sequence is detailed in the datasheet and application notes.
  • To optimize the SLG46538V for low power consumption, Renesas recommends using the lowest possible supply voltage, reducing the clock frequency, and using the device's power-down modes. Additionally, optimizing the PCB layout and using low-power external components can also help reduce power consumption.
  • The SLG46538V has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance and power consumption at higher temperatures to ensure reliable operation.
