SLG46580V - Renesas Electronics

Description: The SLG46580, SLG46582, and SLG46583 are small, low power components commonly used to integrate mixed-signal functions under control of an asynchronous state machine. The user creates the circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macro cells of the SLG46580, SLG46582, and SLG46583. This highly versatile device allows a wide variety of functions and control logic to be designed within a very small, low power monolithic integ

Download SLG46580V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

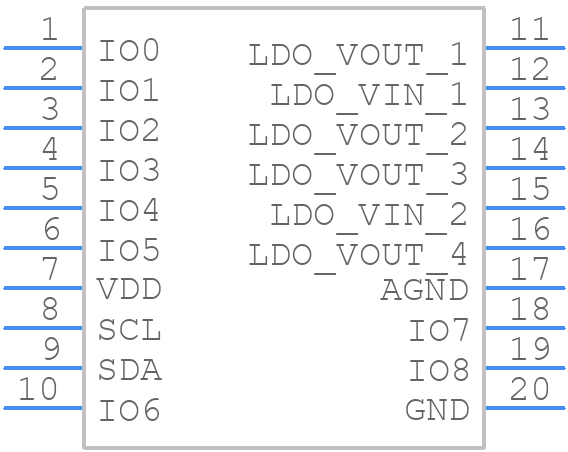

SLG46580V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46580V - Renesas Electronics PCB footprint - Other - Other - SLG46580V-4
click to zoom
3D Models
SLG46580V - Renesas Electronics - 3D model - Other - SLG46580V-4
click to zoom

SLG46580V Details

  • Manufacturer Part Number:

    SLG46580V

  • Brand Name:

    Renesas

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    R-XQCC-N20

  • JTAG BST:

    NO

  • Length:

    3 mm

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    8

  • Number of Inputs:

    9

  • Number of Macro Cells:

    15

  • Number of Outputs:

    8

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 8 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.08X.12,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

SLG46580V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1155, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The SLG46580V has a built-in overcurrent protection feature. To implement it, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. The device will automatically shut down when the current exceeds the set threshold.
  • Although the datasheet doesn't specify a maximum operating frequency, Renesas recommends operating the device at frequencies up to 100 kHz for optimal performance and to avoid electromagnetic interference (EMI) issues.
  • The SLG46580V is rated for operation up to 125°C. However, for high-temperature applications, Renesas recommends derating the device's power dissipation and using a heat sink to ensure reliable operation.
  • The SLG46580V's internal registers can be programmed using the I2C interface. Renesas provides a programming guide in their application note AN-1153, which includes register maps and programming examples.
