Description:The SLG46620 provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macro cells of the SLG46620. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.
Renesas provides a recommended PCB layout guide in the SLG46620G application note (Document Number: R01AN4393EU0100). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The SLG46620G has multiple low-power modes, including Sleep, Hibernate, and Shutdown. To configure the device for low-power mode, refer to the 'Power Management' section of the datasheet and the 'Low-Power Mode' application note (Document Number: R01AN4394EU0100).
The SLG46620G has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. Refer to the 'Absolute Maximum Ratings' section of the datasheet for more information.
Yes, the SLG46620G is designed to operate in high-vibration environments. However, it's essential to follow proper PCB design and assembly guidelines to ensure the device's reliability and performance. Refer to the 'Mechanical Characteristics' section of the datasheet for more information.
Renesas provides a troubleshooting guide in the SLG46620G application note (Document Number: R01AN4395EU0100). It includes common issues, symptoms, and solutions to help engineers quickly identify and resolve problems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG46620G Overview

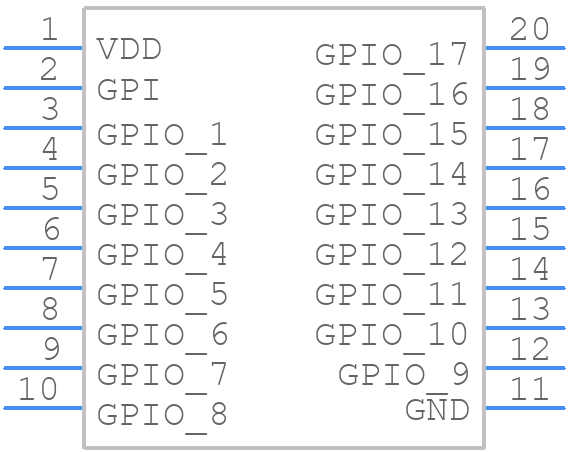

Use the download button to access the SLG46620G schematic symbol, PCB footprint, and 3D model.
