SLG46625-AP - Renesas Electronics

Description: The SLG46625-A provides a small, low power component for commonly used mixed-signal functions.  The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macrocells of the SLG46625-A. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power AEC-Q100 qualified integrated circuit.

Download SLG46625-AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

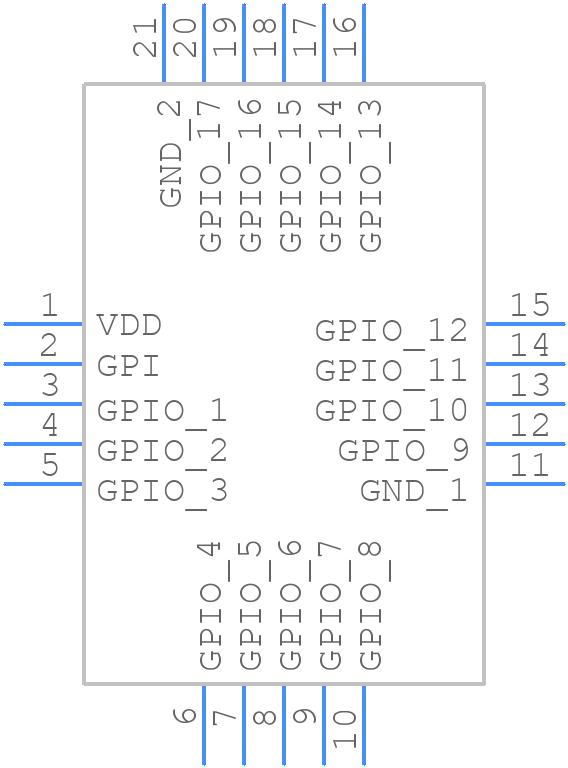

SLG46625-AP - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46625-AP - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN 20L 173 MIL
click to zoom
3D Models
SLG46625-AP - Renesas Electronics - 3D model - Quad Flat No-Lead - TQFN 20L 173 MIL
click to zoom

SLG46625-AP Details

  • Manufacturer Part Number:

    SLG46625-AP

  • Brand Name:

    Renesas

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.55

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    S-XQCC-N20

  • JTAG BST:

    NO

  • Length:

    3.5 mm

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    17

  • Number of Inputs:

    18

  • Number of Macro Cells:

    1

  • Number of Outputs:

    17

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 17 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 13-INCH

  • Programmable Logic Type:

    OT PLD

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

SLG46625-AP Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-2205, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The SLG46625-AP has a built-in power sequencer, but it requires external resistors and capacitors to set the sequencing timing. Renesas provides an example circuit and calculation method in their application note AN-2204.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at high temperatures. Consult the application note AN-2203 for thermal management guidelines.
  • The SLG46625-AP has multiple low-power modes, including shutdown and sleep modes. Consult the datasheet and application note AN-2202 for register settings and configuration guidelines to achieve optimal power savings.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF or higher, placed as close as possible to the device's power pins. Consult the application note AN-2201 for more information.
