SLG46721V - Renesas Electronics

Description: IC CPLD 9MC 20STQFN 1.71V ~ 1.89V, 3V ~ 3.6V, 4.5V ~ 5.5V Surface Mount

Download SLG46721V Model
Schematic

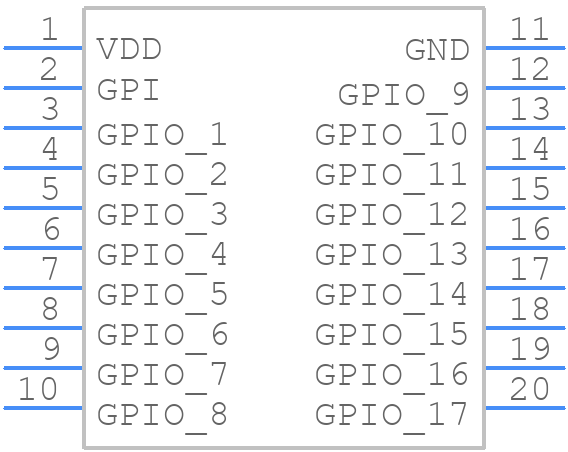

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLG46721V - Renesas Electronics PCB footprint - Other - Other - 20-pin STQFN_2024
click to zoom
3D Models
SLG46721V - Renesas Electronics  - 3D model - Other - 20-pin STQFN_2024
click to zoom

SLG46721V Details

  • Manufacturer Part Number:

    SLG46721V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    CAN ALSO OPERATE AT 3.3V OR 5V SUPPLY

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    R-XQCC-N20

  • JTAG BST:

    NO

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    17

  • Number of Inputs:

    18

  • Number of Macro Cells:

    9

  • Number of Outputs:

    17

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 17 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.08X.12,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

SLG46721V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1155, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The SLG46721V has a built-in overcurrent detection feature. To implement overcurrent protection, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. The device will automatically shut down if the current exceeds the set threshold.
  • Although the datasheet specifies a maximum VDD voltage of 5.5V, Renesas recommends limiting the voltage to 5.25V during power-up to ensure reliable operation and prevent damage to the device.
  • Yes, the SLG46721V is rated for operation up to 125°C. However, it's essential to follow the recommended thermal design guidelines and ensure proper heat sinking to maintain reliable operation at high temperatures.
