Silego provides a recommended PCB layout guide in their application note AN-101, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The SLG46722V has a built-in low-power mode that can be enabled by setting the PWROK pin low. Additionally, the device can be configured to enter low-power mode automatically when the input voltage falls below a certain threshold. Refer to the datasheet section 7.3 for more details.
The SLG46722V is designed to operate up to 100 MHz, but the actual operating frequency may vary depending on the specific application and system requirements. It's recommended to consult with Silego's technical support team for specific guidance on operating frequency.
The SLG46722V is rated for operation up to 125°C, but it's essential to follow proper thermal management guidelines to ensure reliable operation. Silego provides thermal management guidelines in their application note AN-102.
Silego provides a troubleshooting guide in their application note AN-103, which covers common issues and debugging techniques. Additionally, engineers can consult with Silego's technical support team for personalized assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG46722V Overview

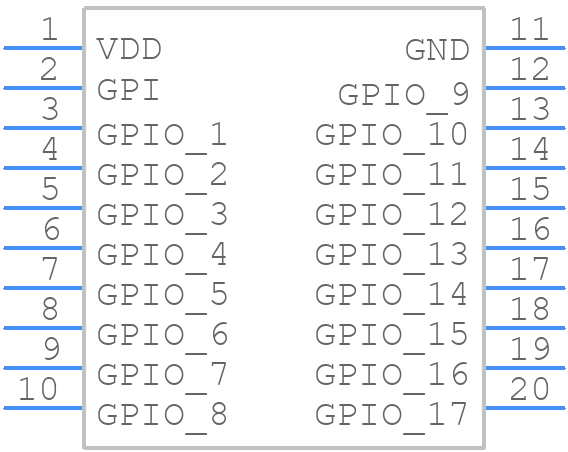

Use the download button to access the SLG46722V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG46,
or try a keyword search, such as Programmable Logic Devices
