SLG46824G - Renesas Electronics

Description: The SLG46824 provides a small, low power component for commonly used mixed-signal functions. The user creates the circuit design by programming the multiple time Non-Volatile Memory (NVM) to configure the interconnect logic, the IOs and the macrocells of the SLG46824. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.

Download SLG46824G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

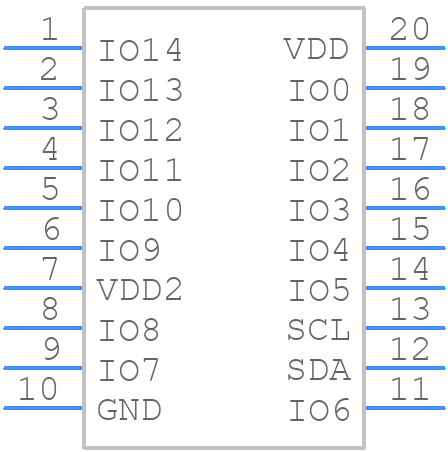

SLG46824G - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46824G - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PACKAGE OUTLINES FOR TSSOP 20L 173 MIL GREEN
click to zoom
3D Models
SLG46824G - Renesas Electronics - 3D model - Small Outline Packages - PACKAGE OUTLINES FOR TSSOP 20L 173 MIL GREEN
click to zoom

SLG46824G Details

  • Manufacturer Part Number:

    SLG46824G

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    YES

  • JESD-30 Code:

    R-PDSO-G20

  • JTAG BST:

    NO

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    13

  • Number of Inputs:

    13

  • Number of Macro Cells:

    19

  • Number of Outputs:

    15

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    0 DEDICATED INPUTS, 13 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

SLG46824G Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1154, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The SLG46824G has a built-in overcurrent protection feature that can be enabled by setting the OCP pin high. Additionally, external overcurrent protection circuits can be implemented using resistors and zener diodes, as described in the datasheet.
  • The SLG46824G is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and power dissipation. It's recommended to consult with Renesas support for specific guidance.
  • The SLG46824G's OTP memory can be programmed using Renesas' proprietary programming tool, such as the IAR Embedded Workbench or the Renesas Flash Programmer. The programming process typically involves creating a binary file, connecting the device to the programmer, and uploading the file to the device.
  • The recommended power-up sequence for the SLG46824G is to apply the power supply voltage (VDD) first, followed by the clock signal (CLK). This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
