SLG46826G - Renesas Electronics

Description: The SLG46826 provides a small, low power component for commonly used mixed-signal functions. The user creates the circuit design by programming the multiple time Non-Volatile Memory (NVM) to configure the interconnect logic, the IOs and the macrocells of the SLG46826. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.

Download SLG46826G Model
Schematic

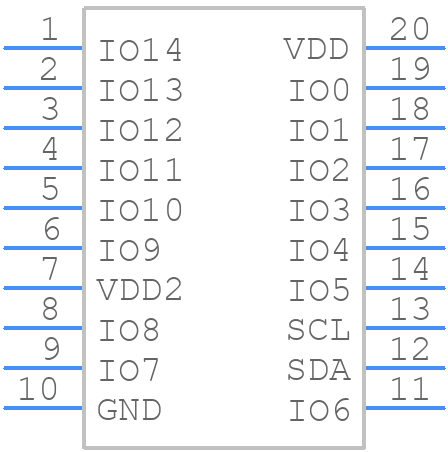

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLG46826G - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - tssop20_
click to zoom
3D Models
SLG46826G - Renesas Electronics  - 3D model - Small Outline Packages - tssop20_
click to zoom

SLG46826G Details

  • Manufacturer Part Number:

    SLG46826G

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    1

  • Programmable Logic Type:

    OT PLD

SLG46826G Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the SLG46826G application note (Document Number: R01DS0244EJ0100). It's essential to follow this guide to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
  • To achieve the best accuracy, it's recommended to use an external crystal oscillator. However, if you need to use the internal oscillator, ensure that the VDD voltage is stable and within the recommended range. Also, use the OSCCFG register to select the optimal oscillator frequency and mode for your application.
  • The maximum current that can be sourced or sunk by the GPIO pins is 4mA per pin. However, it's recommended to limit the current to 2mA per pin to ensure reliable operation and prevent overheating.
  • The SLG46826G has a built-in WDT that can be enabled and configured using the WDTCSR register. You can set the WDT timeout period, enable or disable the WDT, and configure the WDT reset mode. Refer to the datasheet and application notes for more information.
  • The SLG46826G has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to provide adequate heat dissipation, such as using a heat sink or thermal pad, and ensuring good airflow around the device. You should also avoid overheating the device during soldering or rework.
