SLG46826V - Renesas Electronics

Description: The SLG46826 provides a small, low power component for commonly used mixed-signal functions. The user creates the circuit design by programming the multiple time Non-Volatile Memory (NVM) to configure the interconnect logic, the IOs and the macrocells of the SLG46826. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.

Download SLG46826V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

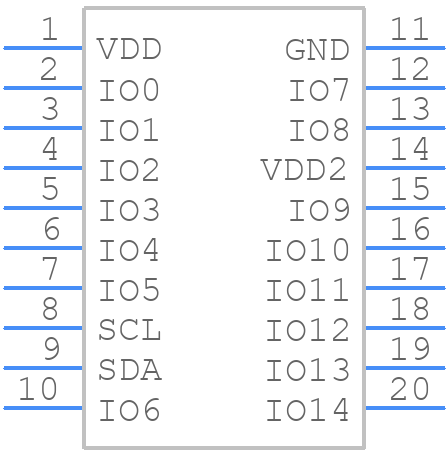

SLG46826V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46826V - Renesas Electronics PCB footprint - Other - Other - SLG46826V-5
click to zoom
3D Models
SLG46826V - Renesas Electronics - 3D model - Other - SLG46826V-5
click to zoom

SLG46826V Details

  • Manufacturer Part Number:

    SLG46826V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    1

  • Programmable Logic Type:

    OT PLD

SLG46826V Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep analog and digital signals separate, and use a common ground point for analog and digital grounds.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power decoupling, and place it as close to the device as possible. Ensure the power supply is stable and within the recommended voltage range (1.8V to 5.5V).
  • The internal oscillator can operate up to 16 MHz, but the recommended frequency is 12 MHz for optimal performance and power consumption.
  • Yes, the SLG46826V is suitable for battery-powered devices due to its low power consumption (typically 350 μA/MHz). However, consider using a low-dropout regulator (LDO) to regulate the power supply and minimize power consumption.
  • Use the Renesas Flash Development Toolkit (FDT) or a third-party programmer to program the NVM. Ensure the device is properly powered and decoupled during programming.
