SLG46826VTR - Renesas Electronics

Description: DIALOG SEMICONDUCTOR - SLG46826VTR - PROG MIXED SIGNAL MATRIX W/ISP, STQFN-20

Download SLG46826VTR Model

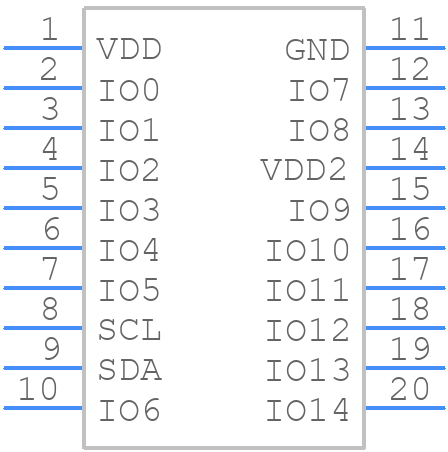

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLG46826VTR - Renesas Electronics PCB footprint - Other - Other - STQFN 20L 2x3mm 0.4P FCD_1
click to zoom
3D Models
SLG46826VTR - Renesas Electronics  - 3D model - Other - STQFN 20L 2x3mm 0.4P FCD_1
click to zoom

SLG46826VTR Details

  • Manufacturer Part Number:

    SLG46826VTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.55

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO HAS A SUPPLY RANGE OF 2.3V TO 5.5V

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    YES

  • JESD-30 Code:

    R-XQCC-N20

  • JTAG BST:

    NO

  • Length:

    3 mm

  • Number of I/O Lines:

    13

  • Number of Inputs:

    13

  • Number of Macro Cells:

    19

  • Number of Outputs:

    15

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    0 DEDICATED INPUTS, 13 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.08X.12,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    BOX, TR, 7-INCH

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

SLG46826VTR Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1155, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The SLG46826VTR has an internal POR circuit, but it's recommended to use an external POR circuit to ensure a reliable power-on reset. A simple external POR circuit can be implemented using a voltage supervisor IC, such as the TLV7031, and a few external components.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • The SLG46826VTR has a built-in low-power mode that can be enabled by setting the PMODE pin to a logic low state. Additionally, the device's power consumption can be further reduced by disabling unused peripherals and using the device's power gating feature.
  • The SLG46826VTR can operate at clock frequencies up to 32 kHz, but the recommended clock frequency is 16 kHz for optimal performance and power consumption. Higher clock frequencies may result in increased power consumption and decreased performance.
