SLG46880V - Renesas Electronics

Description: Renesas' Zero Static Power ASM (Asynchronous State Machine) is fault tolerant and operates continuously over a wide voltage range with very low latency. The SLG46880 provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the IO Pins and the macrocells of the SLG46880. This highly versatile device allows a wide variety of mixed-signal functions to be design

Download SLG46880V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

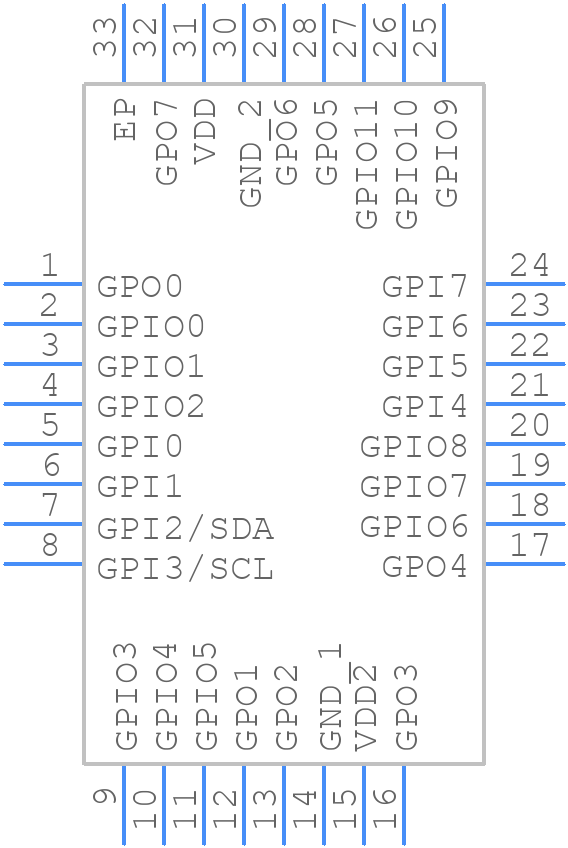

SLG46880V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46880V - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - STQFN 32L 4 mm x 4 mm 0.4P Package JEDEC MO-220, Variation WECE
click to zoom
3D Models
SLG46880V - Renesas Electronics - 3D model - Quad Flat No-Lead - STQFN 32L 4 mm x 4 mm 0.4P Package JEDEC MO-220, Variation WECE
click to zoom

SLG46880V Details

  • Manufacturer Part Number:

    SLG46880V

  • Brand Name:

    Renesas

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    1

  • Programmable Logic Type:

    OT PLD

SLG46880V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the SLG46880V application note (Document Number: R01DS0243EJ0100). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The SLG46880V has a low-power mode that can be enabled by setting the PWROFF pin high. Additionally, the device has a shutdown mode that can be enabled by setting the SHDN pin high. Refer to the datasheet for more information on power management and low-power modes.
  • The SLG46880V has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • The SLG46880V's OTP memory can be programmed using the Renesas Flash Development Toolkit (FDT) software. The FDT software provides a graphical user interface for programming and verifying the OTP memory content. Refer to the FDT user manual for more information.
  • The SLG46880V can operate at clock frequencies up to 100 MHz. However, the recommended clock frequency depends on the specific application and system requirements. It's recommended to consult the datasheet and application notes for more information on clock frequency selection.
