Description:The SLG55593A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. The device supports both the latest USB Battery Charging Specification Revision 1.2 including data contact detection and a set resistor bias for Apple* compliant devices as well as legacy USB D+/D- short detection using data line pull-up. The SLG55593A can also support CDP mode (FAST charging and data communication available mode if smartphone can support CDP mode.) The SLG
SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.14 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
2 mm
SLG55593AV Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide in their application note AN1841, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Renesas recommends following the power-up sequence outlined in the datasheet, which includes applying a stable voltage to VCC, followed by a reset pulse to the RESET pin. Additionally, ensure that all input pins are properly terminated and configured according to the datasheet specifications.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the I/O pins have a maximum allowed voltage of VCC + 0.5V to prevent damage or latch-up. Ensure that the voltage on the I/O pins does not exceed this limit.
Renesas recommends implementing ESD protection measures, such as using ESD diodes or TVS diodes, to protect the device from electrostatic discharge. Additionally, follow proper handling and storage procedures to minimize the risk of ESD damage.
Renesas recommends using a high-quality clock signal with a minimum frequency of 10 kHz and a maximum frequency of 100 MHz. Ensure the clock signal has a stable amplitude and minimal jitter to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG55593AV Overview

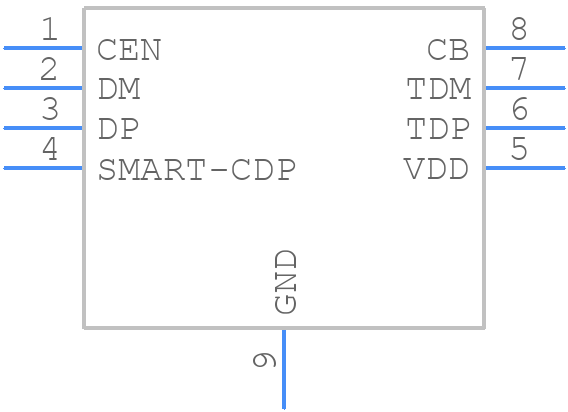

Use the download button to access the SLG55593AV schematic symbol, PCB footprint, and 3D model.
