Description:The SLG59H1005V is a high‑performance, self‑powered 50 mΩ NMOS load switch with back-to-back reverse‑current blocking designed for all 4.5 to 22 V power rails up to 3 A. Using a proprietary MOSFET design, the SLG59H1005V achieves a stable 50 mΩ RDSON across a wide input voltage range. In combining novel FET design and copper pillar interconnects, the SLG59H1005V package also exhibits a low thermal resistance for high‑current operation. Designed to operate over a -40 °C to 85 °C range, the SLG59H1005V is ava
CURRENT LIMIT:3.4A; THERMAL SHUTDOWN:125C; ADJUSTABLE CURRENT LIMIT
Adjustable Threshold:
YES
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-XQCC-N18
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
18
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC18,.06X.12,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
22 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
3.2
Width:
1.6 mm
SLG59H1005V Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout in their application note (AN1844) for the SLG59H1005V, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The SLG59H1005V requires a specific power-up sequence and configuration to function correctly. Refer to the datasheet section 7.2 'Power-Up Sequence' and section 8 'Configuration and Control' for detailed information on power-up, reset, and configuration procedures.
The internal voltage regulator of the SLG59H1005V has a limited current capability and may not be suitable for all applications. If your design requires a higher current or specific voltage regulation, consider using an external voltage regulator to ensure reliable operation and minimize power consumption.
Renesas provides a range of debugging tools and resources, including the Renesas Debug Tool, which allows you to monitor and control the device's registers and peripherals. Additionally, consult the datasheet and application notes for troubleshooting guidelines and common error scenarios.
The SLG59H1005V has a maximum junction temperature of 150°C. Ensure your design takes into account thermal design considerations such as heat sink attachment, thermal interface materials, and airflow to prevent overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59H1005V Overview

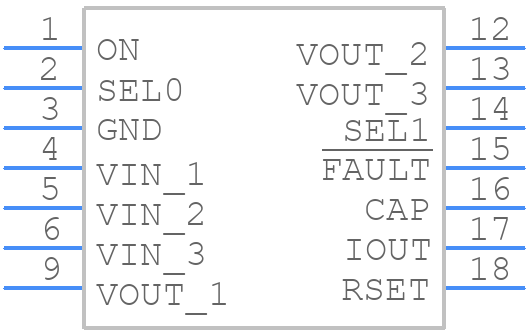

Use the download button to access the SLG59H1005V schematic symbol, PCB footprint, and 3D model.
