CURRENT LIMIT:3.2A; THERMAL SHUTDOWN:150C; ADJUSTABLE CURRENT LIMIT
Adjustable Threshold:
YES
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-XQCC-N18
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
18
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC18,.06X.12,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
22 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
4.5 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
1.6 mm
SLG59H1012V Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The datasheet provides general guidelines for input and output capacitors, but Renesas recommends using capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value that meets the specified ripple current and ESR requirements.
To troubleshoot POR issues, check the power supply voltage, ensure the POR pin is properly connected, and verify that the device is not in a brownout condition. Also, consult the datasheet and application notes for specific POR timing and voltage requirements.
Operating the device outside of the recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even device failure. It's essential to ensure the device operates within the specified voltage, temperature, and frequency ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59H1012V Overview

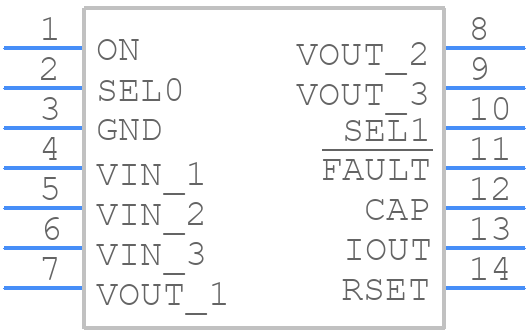

Use the download button to access the SLG59H1012V schematic symbol, PCB footprint, and 3D model.
