Description:The SLG59H1019V is a high‑performance 13 mΩ NMOS load switch designed to control 4.5 V to 25.2 V power rails up to 5 A. Using a proprietary MOSFET design, the SLG59H1019V achieves a stable 13 mΩ RDSON across a wide input voltage range. In combining novel FET design and copper pillar interconnects, the SLG59H1019V package also exhibits a low thermal resistance for high‑current operation. Designed to operate over a -40 °C to 85 °C range, the SLG59H1019V is available in a low thermal resistance, RoHS‑compliant
CURRENT LIMIT:3.4A; THERMAL SHUTDOWN:145C; ADJUSTABLE CURRENT LIMIT
Adjustable Threshold:
YES
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-XQCC-N18
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
4
Number of Terminals:
18
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC18,.06X.12,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
25.2 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
1.6 mm
SLG59H1019V Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The input and output capacitors should be selected based on the specific application requirements, such as voltage rating, capacitance value, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage.
To troubleshoot POR issues, check the power supply voltage, ensure the POR pin is properly connected, and verify that the reset signal is properly generated. Also, consult the datasheet and application notes for specific guidance on POR operation and troubleshooting.
To ensure EMC and EMI compliance, follow the recommended PCB layout guidelines, use shielding and filtering components as necessary, and implement proper grounding and decoupling techniques. Consult the datasheet and application notes for specific guidance on EMC and EMI considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59H1019V Overview

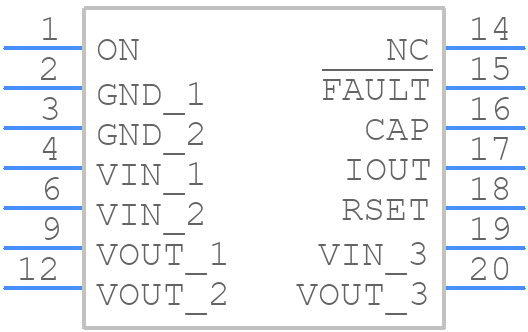

Use the download button to access the SLG59H1019V schematic symbol, PCB footprint, and 3D model.
