Description:The SLG59H1401C is a high voltage GreenFET Load Switch designed for OR’ing or manual Power MUX applications. The part comes with two 3 A rated load switches that are well suited for a variety of systems having multiple power sources. The device will automatically detect, select, and seamlessly transition between available inputs. Additionally, manual switching between two power rails allowed.
Renesas provides a recommended PCB layout in their application note AN1844, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The SLG59H1401C has an internal overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry to ensure reliable operation. A simple solution is to use a current sense resistor and a comparator to detect overcurrent conditions and trigger a shutdown or warning signal.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 100°C for optimal performance and reliability.
To ensure EMC, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding components to minimize electromagnetic interference. It's also essential to perform EMC testing and certification to ensure compliance with relevant standards.
The recommended power-up sequence is to apply the power supply voltage (VCC) before the input voltage (VIN). This ensures that the internal voltage regulators and bias circuits are properly initialized before the device starts operating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59H1401C Overview

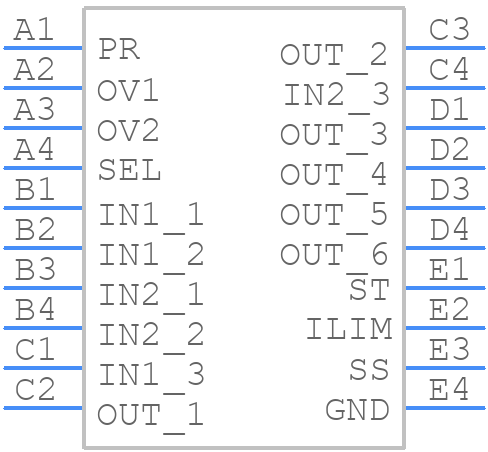

Use the download button to access the SLG59H1401C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG59,
or try a keyword search, such as Power Management Circuits
