Description:The SLG59M1568V is designed for load switching applications. The part comes with one 9 A rated MOSFET switched on by an ON control pin. MOSFET turn on time is independently adjusted by an external capacitor.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The input and output capacitors should be selected based on the specific application requirements, such as voltage rating, capacitance value, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage.
To troubleshoot issues with the SLG59M1568V, start by verifying the PCB layout and component selection, then check the input and output voltage levels, and finally, use oscilloscope measurements to identify any signs of oscillation or instability.
Operating the SLG59M1568V outside of the recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even device failure. It's essential to ensure that the device operates within the specified voltage, current, and temperature ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59M1568V Overview

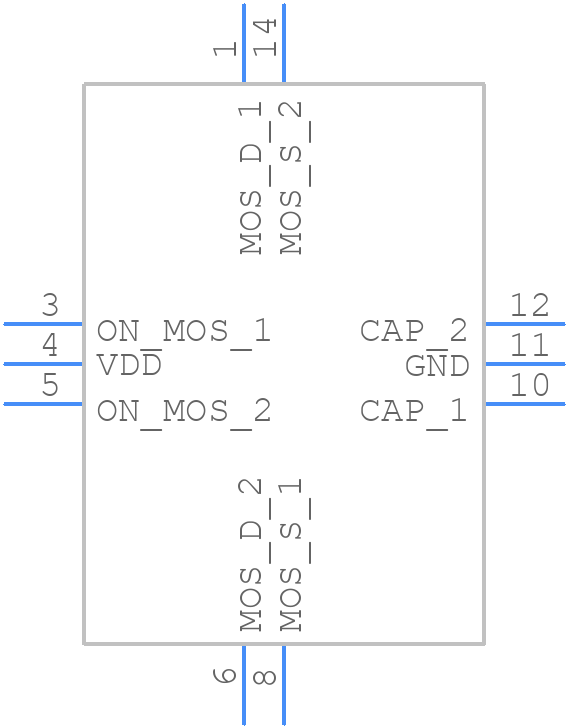

Use the download button to access the SLG59M1568V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG59,
or try a keyword search, such as Power Management Circuits
