Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
Renesas provides a component selection guide in their datasheet and application notes, which includes recommendations for capacitors, resistors, and inductors. Additionally, engineers can use online tools and simulation software to simulate and optimize their design.
The SLG59M1606V has an operating temperature range of -40°C to 125°C, but it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Engineers should consult the datasheet and application notes for specific temperature-related guidelines.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect and respond to overcurrent conditions. Engineers can also use the device's built-in overcurrent protection features, such as the OC pin, to implement a custom protection scheme.
Renesas provides guidelines for soldering and assembly in their datasheet and application notes, which include recommendations for soldering temperature, time, and techniques. Engineers should follow these guidelines to ensure reliable assembly and minimize the risk of damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59M1606V Overview

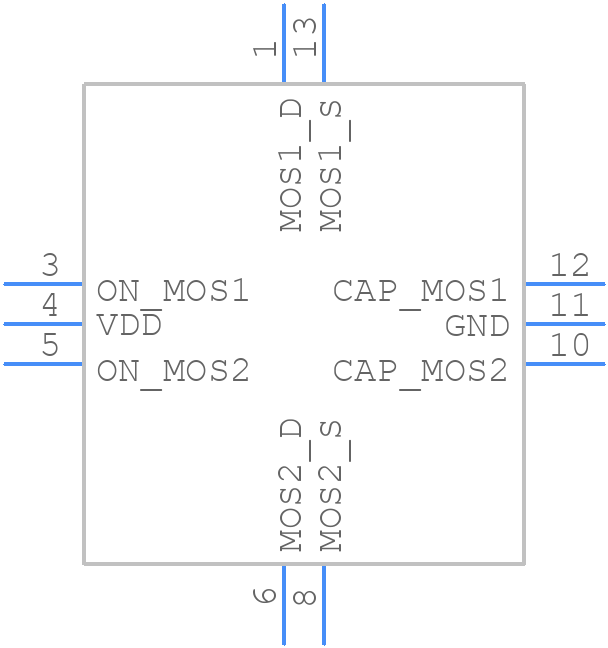

Use the download button to access the SLG59M1606V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG59,
or try a keyword search, such as Peripheral Drivers
