Description:The SLG59M1639V is a dual‑channel, 45 mΩ PMOS load switch designed to switch 1.5 to 5.5 V power rails up to 2 A in each channel. When either channel is enabled, reverse‑current protection will quickly open the switch in the event of a reverse‑voltage condition is detected (a VOUT > VIN + 50 mV condition opens the switch). In the event that the channel’s VIN voltage is too low, the load switch also contains an internal UVLO threshold monitor to keep or to turn the switch OFF. Each load switch is independentl
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or throttling mechanisms if necessary.
Renesas recommends following the JEDEC J-STD-020D.1 standard for soldering conditions, which specifies a peak temperature of 260°C, a dwell time of 30-60 seconds, and a soldering process that minimizes thermal shock and prevents damage to the device.
To handle ESD protection, follow the recommended handling and storage procedures outlined in the datasheet, use ESD-protective packaging and materials, and implement ESD protection circuits or devices in the system design. Additionally, consider using a TVS (Transient Voltage Suppressor) or ESD protection diode to protect the device from electrostatic discharge.
When using the SLG59M1639VTR in a high-reliability or safety-critical application, it's essential to follow the recommended design and testing guidelines, implement robust fault detection and correction mechanisms, and ensure compliance with relevant industry standards and regulations. Additionally, consider using redundant or fail-safe design approaches to minimize the risk of failure or malfunction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59M1639VTR Overview

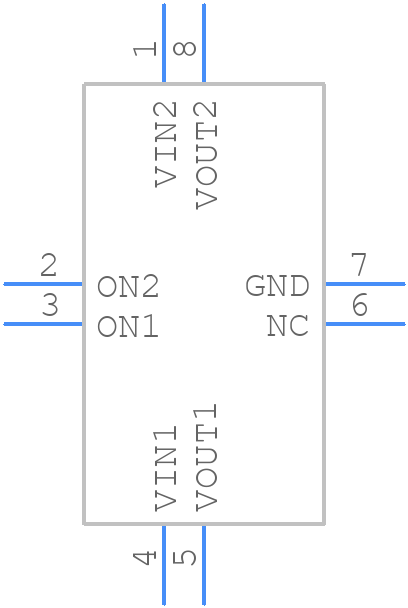

Use the download button to access the SLG59M1639VTR schematic symbol, PCB footprint, and 3D model.
