SLG5NT1757V - Renesas Electronics

Description: Power Switch ICs - Power Distribution An Adjustable Turn-on Time, 5 m?, 4 A Ultra Low Power Switch with Fast Discharge

Download SLG5NT1757V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

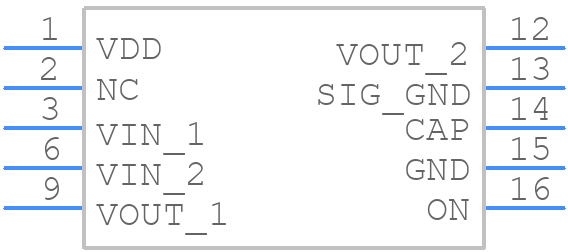

SLG5NT1757V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG5NT1757V - Renesas Electronics PCB footprint - Other - Other - SLG5NT1757V-1
click to zoom
3D Models
SLG5NT1757V - Renesas Electronics - 3D model - Other - SLG5NT1757V-1
click to zoom

SLG5NT1757V Details

  • Manufacturer Part Number:

    SLG5NT1757V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    STQFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XQCC-N16

  • Length:

    2.5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.06X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    0.0018 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.6 mm

SLG5NT1757V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The SLG5NT1757V has an internal overcurrent protection (OCP) feature, but it's recommended to add an external OCP circuit to ensure reliable operation. Renesas provides a reference design for OCP in their application notes.
  • Renesas recommends using a low-ESR ceramic capacitor with a value between 4.7uF to 10uF for the input capacitor, depending on the specific application requirements and operating conditions.
  • Renesas provides EMC guidelines and recommendations in their application notes, including layout considerations, filtering, and shielding techniques to ensure compliance with relevant EMC standards.
  • The SLG5NT1757V has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance and power dissipation at higher temperatures to ensure reliable operation.
