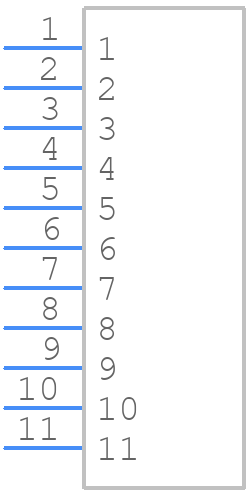

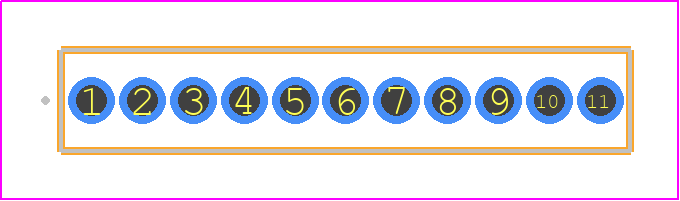

SLM-111-01-S-S - SAMTEC

SLM-111-01-S-S Details

• Manufacturer Part Number:

  SLM-111-01-S-S

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  1 Week

• Manufacturer:

  Samtec Inc

• YTEOL:

  9

• Additional Feature:

  TIGER BUY CONTACT

• Body Breadth:

  0.1 inch

• Body Depth:

  0.18 inch

• Body Length:

  0.55 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (30) OVER NICKEL (50)

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.224 N

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.05 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.115 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  11

• Withdrawl Force-Min:

  1.668 N
