Part Image

SLRC61003HNE - NXP

Description: High-performance ICODE frontend SLRC610 and SLRC610 plus

Download SLRC61003HNE Model

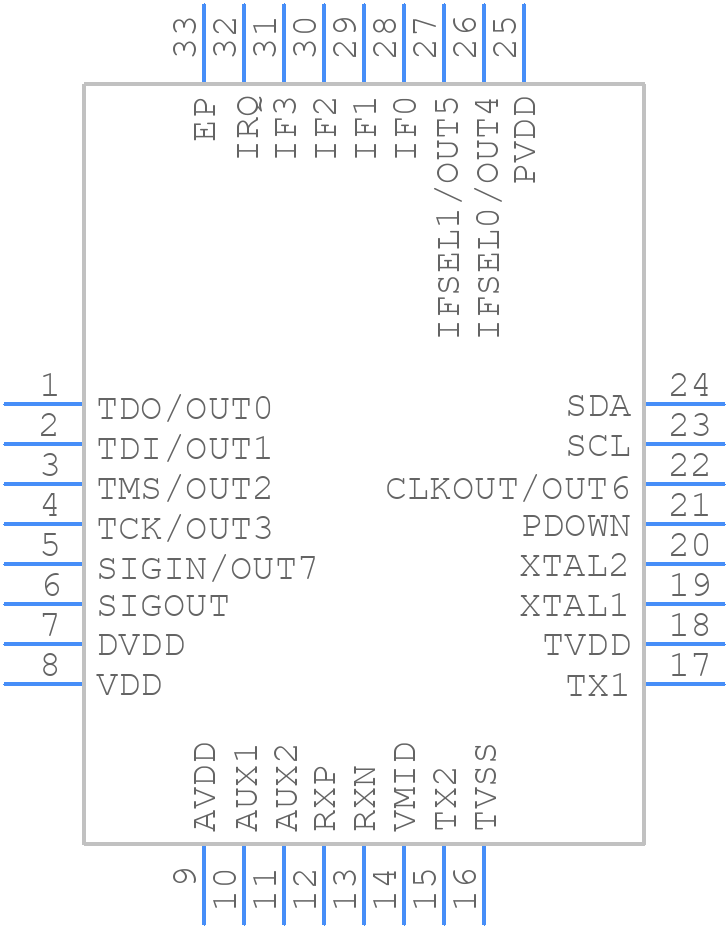

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLRC61003HNE - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT617-1
click to zoom
3D Models
SLRC61003HNE - NXP  - 3D model - Quad Flat No-Lead - SOT617-1
click to zoom

SLRC61003HNE Details

  • Manufacturer Part Number:

    SLRC61003HNE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-32

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-06-27

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

SLRC61003HNE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SLRC61003HNE is -40°C to 125°C.
  • Ensure a stable power supply with a voltage range of 1.71V to 1.89V, and decouple the power pins with a 10uF capacitor to minimize noise and voltage drops.
  • The maximum data transfer rate of the SLRC61003HNE is 100 Mbps.
  • Configure the device to enter low-power mode by setting the PWDN pin to a logic low state, and ensure that the device is in a stable state before entering low-power mode.
  • The RST pin is used to reset the device. When the RST pin is driven low, the device is reset, and all internal registers are cleared.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLRC61003HNE Overview

Use the download button to access the SLRC61003HNE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLRC6, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
