The recommended PCB layout for optimal thermal performance involves using a 4-layer PCB with a solid ground plane, placing thermal vias under the package, and using a thermal pad connected to the ground plane.
To ensure reliable operation across the entire temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and temperature ratings, and to implement adequate thermal management and decoupling.
The critical timing parameters for the SLS32AIA020X4USON10XTMA4 include the clock frequency, clock-to-output delay, and output hold time, which are specified in the datasheet and must be carefully considered during system design.
Power sequencing and reset signals must be carefully managed to ensure proper device operation. The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the clock signal. The reset signal should be asserted after power-up and de-asserted after a minimum delay.
To prevent electrostatic discharge (ESD) damage, it is recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the I/O lines, and to follow proper handling and storage procedures for the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLS32AIA020X4USON10XTMA4 Overview

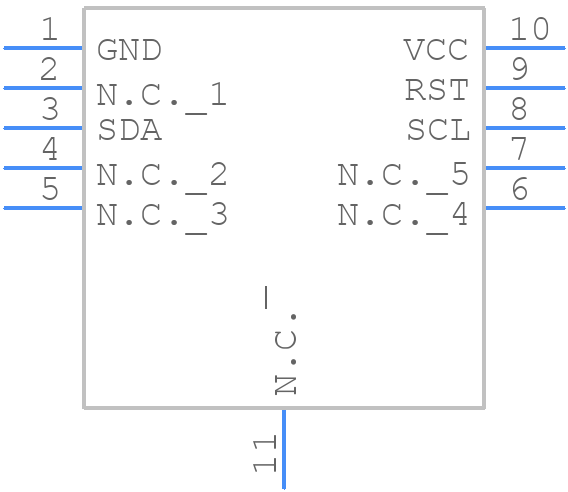

Use the download button to access the SLS32AIA020X4USON10XTMA4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLS32,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
