SLW-109-01-F-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

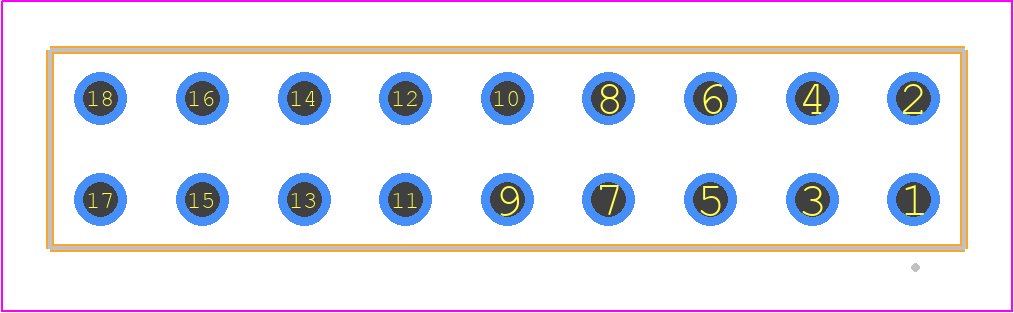

SLW-109-01-F-D - SAMTEC PCB footprint - Other - Other - SLW-109-01-X-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLW-109-01-F-D
Part Number SLW-109-01-F-D
Manufacturer SAMTEC
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - SLW-109-01-X-D
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SLW-109-01-F-D Details

Manufacturer Part Number:
SLW-109-01-F-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body Breadth:
0.195 inch
Body Depth:
0.18 inch
Body Length:
0.9 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
BELLOWED TYPE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
5.2 A
Terminal Length:
0.115 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
18

SLW-109-01-F-D Frequently Asked Questions (FAQs)

The recommended mating sequence for SLW-109-01-F-D is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the SLW-109-01-F-D is designed to withstand high-vibration environments. Samtec's SLW series connectors are tested to meet the requirements of IEC 61373 Cat. 2, which includes vibration testing.
The maximum operating temperature for the SLW-109-01-F-D is 125°C. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
The SLW-109-01-F-D has a sealed design that provides some level of protection against moisture. However, it's not designed for immersion in water or exposure to high-pressure water jets. If you need a connector for a wet environment, consider using a connector with a higher IP rating or additional sealing measures.
The typical lead time for the SLW-109-01-F-D can vary depending on the quantity, region, and availability. However, Samtec typically quotes a lead time of 2-4 weeks for standard products. It's recommended to check with authorized distributors or Samtec's customer service for the most up-to-date lead time information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SLW-109-01-F-D Overview

Use the download button to access the SLW-109-01-F-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SLW-1, or try a keyword search, such as Headers and Edge Type Connectors
