SLW-118-01-T-S - SAMTEC

Description: 18 Position, .100" Tiger Buy™ Low Profile Socket Strip, Single-Row

Download SLW-118-01-T-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

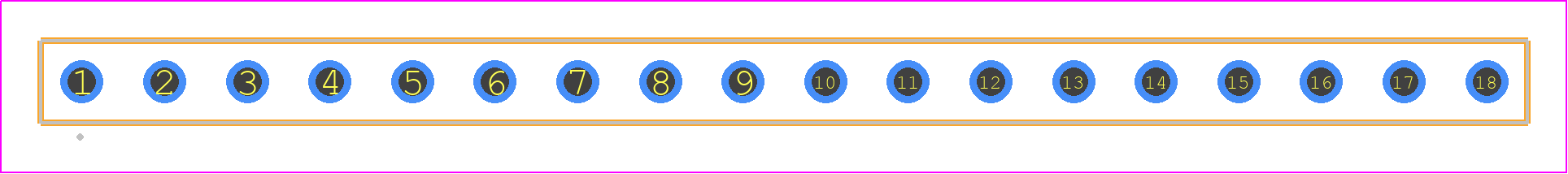

SLW-118-01-T-S - SAMTEC PCB footprint - Other - Other - SLW-118-01-X-S
click to zoom

SLW-118-01-T-S Details

  • Manufacturer Part Number:

    SLW-118-01-T-S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.18 inch

  • Body Length:

    1.8 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    MATTE TIN OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    5.2 A

  • Terminal Length:

    0.115 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

SLW-118-01-T-S Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the SLW-118-01-T-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the SLW-118-01-T-S connector is designed to withstand vibration and shock according to IEC 61373 Category 2. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • The maximum operating temperature for the SLW-118-01-T-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current rating for temperatures above 85°C (185°F).
  • Yes, the SLW-118-01-T-S connector is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
  • Samtec provides recommended PCB layout and footprint guidelines in their application notes and technical documentation. It's recommended to consult with Samtec's technical support for specific design requirements.
