SLW-134-01-S-S footprint, schematic symbol and 3D model by SAMTEC

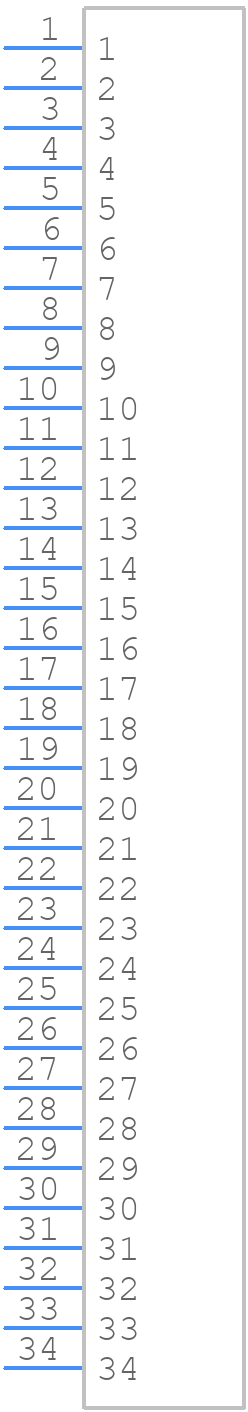

Symbol

click to zoom

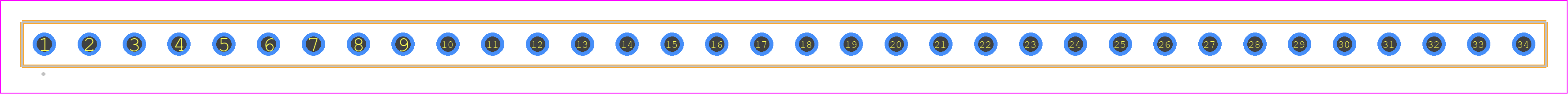

PCB Footprints

SLW-134-01-S-S - SAMTEC PCB footprint - Other - Other - SLW-134-01-X-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLW-134-01-S-S
Part Number SLW-134-01-S-S
Manufacturer SAMTEC
Pin Count 34
Part Category Connector
Package Category Other
Footprint Name Other - SLW-134-01-X-S
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SLW-134-01-S-S Details

Manufacturer Part Number:
SLW-134-01-S-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
LOW PROFILE
Body Breadth:
0.1 inch
Body Depth:
0.18 inch
Body Length:
3.4 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
3.336 N
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
30u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.115 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
34
Withdrawl Force-Min:
1.668 N

SLW-134-01-S-S Frequently Asked Questions (FAQs)

The recommended mating sequence for SLW-134-01-S-S is to mate the connectors in a perpendicular orientation, ensuring the guides are aligned, and then rotate the connectors into their final mated position.
Yes, the SLW-134-01-S-S is designed to withstand high-vibration environments. Samtec's SLW series connectors are tested to meet the requirements of IEC 61373 Cat. II, which includes vibration testing.
The maximum operating temperature for the SLW-134-01-S-S is 125°C (257°F), as specified in the datasheet. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
While the SLW-134-01-S-S is designed to be reliable in various environments, it's not specifically rated for use in harsh environments with high humidity or exposure to chemicals. For such applications, consider using connectors with additional protective features, such as conformal coating or sealed connectors.
The SLW-134-01-S-S is designed for use with standard 1.6 mm (0.063 in) thick PCBs. While it may be possible to use it with different PCB thicknesses or materials, it's essential to consult with Samtec's technical support or perform thorough testing to ensure compatibility and reliability.
