SLW-140-01-L-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

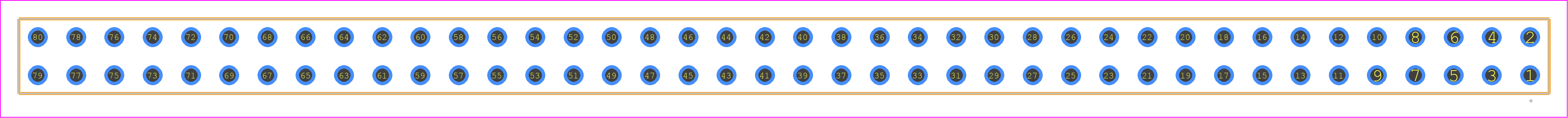

SLW-140-01-L-D - SAMTEC PCB footprint - Other - Other - SLW-140-01-X-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLW-140-01-L-D
Part Number SLW-140-01-L-D
Manufacturer SAMTEC
Pin Count 80
Part Category Connector
Package Category Other
Footprint Name Other - SLW-140-01-X-D
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SLW-140-01-L-D Details

Manufacturer Part Number:
SLW-140-01-L-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body Breadth:
0.195 inch
Body Depth:
0.18 inch
Body Length:
4 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
BELLOWED TYPE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
10u inch
Rated Current (Signal):
5.2 A
Terminal Length:
0.115 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
80

SLW-140-01-L-D Frequently Asked Questions (FAQs)

Samtec provides a recommended PCB layout and land pattern in their Application Notes (AN-104) and PCB Layout Files (available on their website) to ensure proper assembly and reliability.
The SLW-140-01-L-D connector has an operating temperature range of -65°C to +125°C, but it's essential to note that the temperature rating may vary depending on the specific application and environment.
The SLW-140-01-L-D connector is designed for high-speed applications, with a bandwidth of up to 10 Gbps and a signal rise time of 100 ps or faster. However, it's crucial to consult Samtec's signal integrity models and simulation tools to ensure optimal performance.
The SLW-140-01-L-D connector has a mating cycle life of 500 cycles minimum, but this can vary depending on the specific application, environment, and usage. It's recommended to consult Samtec's reliability data and testing reports for more detailed information.
Yes, Samtec recommends following proper assembly and handling procedures to prevent damage to the connector. This includes avoiding excessive force, using proper torque, and following ESD precautions to prevent damage to the connector.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SLW-140-01-L-D Overview

Use the download button to access the SLW-140-01-L-D schematic symbol and PCB footprint.
