SLW-150-01-S-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

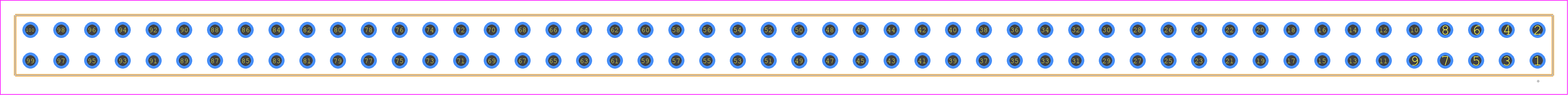

SLW-150-01-S-D - SAMTEC PCB footprint - Other - Other - SLW-150-01-X-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLW-150-01-S-D
Part Number SLW-150-01-S-D
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SLW-150-01-X-D
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SLW-150-01-S-D Details

Manufacturer Part Number:
SLW-150-01-S-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
LOW PROFILE
Body Breadth:
0.195 inch
Body Depth:
0.18 inch
Body Length:
5 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
3.336 N
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
30u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.115 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
100
Withdrawl Force-Min:
1.668 N

SLW-150-01-S-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the SLW-150-01-S-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SLW-150-01-S-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the SLW-150-01-S-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The SLW-150-01-S-D connector has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. For humid or wet environments, consider using a connector with a higher MSL rating or applying conformal coating.
The mating cycle life of the SLW-150-01-S-D connector is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application, mating force, and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SLW-150-01-S-D Overview

Use the download button to access the SLW-150-01-S-D schematic symbol and PCB footprint.
