SM-42TW102 - Nidec Copal

Description: 1 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment

Download SM-42TW102 Model

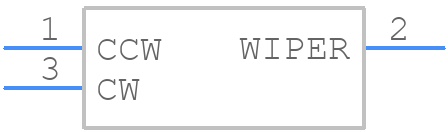

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SM-42TW102 - Nidec Copal PCB footprint - Other - Other - SM-42TW102-2
click to zoom
3D Models
SM-42TW102 - Nidec Copal  - 3D model - Other - SM-42TW102-2
click to zoom

SM-42TW102 Details

  • Manufacturer Part Number:

    SM-42TW102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • YTEOL:

    7

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SCREW

  • Construction:

    Sealed

  • Ganging Number:

    1

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    11

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    5.1 mm

  • Package Length:

    4.8 mm

  • Package Style:

    SMT

  • Package Width:

    3.5 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    85 °C

  • Resistance:

    1000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    TRIMMER

  • Rotational Angle:

    3960 deg

  • Size Code:

    1914

  • Surface Mount:

    YES

  • Technology:

    CERMET

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Shape:

    J BEND

  • Tolerance:

    10%

  • Working Voltage:

    15.8 V

SM-42TW102 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for land pattern design and to ensure a solid ground plane under the component.
  • The SM-42TW102 has a maximum junction temperature of 125°C. Ensure good airflow around the component, and consider using a heat sink or thermal interface material if the operating temperature exceeds 85°C. Follow the manufacturer's thermal management guidelines for optimal performance.
  • The recommended soldering profile is a peak temperature of 240°C for 3-5 seconds, with a ramp-up rate of 1-2°C/s and a ramp-down rate of 1-2°C/s. Ensure the soldering process is within the manufacturer's specified temperature range to prevent damage.
  • The SM-42TW102 is designed for general-purpose applications and may not be suitable for high-vibration environments. If vibration is a concern, consider using a component with specific vibration-resistant design or consult with the manufacturer for custom solutions.
  • Follow the manufacturer's guidelines for EMC and ensure proper shielding, grounding, and filtering in the system design. Additionally, consider using components with built-in EMI filters or consult with the manufacturer for custom EMC solutions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SM-42TW102 Overview

Use the download button to access the SM-42TW102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM-42, or try a keyword search, such as Trimmer Potentiometers
