- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SM13143EL
- Part Number SM13143EL
- Manufacturer Bourns
- Pin Count 50
- Part Category Transformer
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 50 PIN SOP_21
- Released Date Nov 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SM13143EL Details
-
Manufacturer Part Number:
SM13143EL
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Bourns Inc
-
YTEOL:
8.2
-
Additional Feature:
TR, 13 INCH
-
Application:
10/100/1000 BASE-T
-
Approvals:
1CT:1CT
SM13143EL Frequently Asked Questions (FAQs)
-
A symmetrical layout with a central ground plane and minimal track lengths is recommended. Keep the input and output tracks separate and avoid crossing them to minimize noise and crosstalk.
-
Follow the recommended derating curves for temperature and current. Ensure good thermal management, such as using a heat sink or thermal pad, and avoid exceeding the maximum operating temperature of 125°C.
-
The SM13143EL can handle surge currents up to 100 A for 1 ms, but this may vary depending on the specific application and operating conditions. Consult with Bourns Inc or a qualified engineer for specific guidance.
-
Yes, the SM13143EL is designed to withstand vibrations up to 10 G. However, it's essential to ensure the device is properly secured to the PCB and that the PCB is designed to withstand the vibrations.
-
Consult the application notes and troubleshooting guides provided by Bourns Inc. Perform thorough testing, including thermal and electrical characterization, to identify the root cause of the issue.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SM13143EL Overview

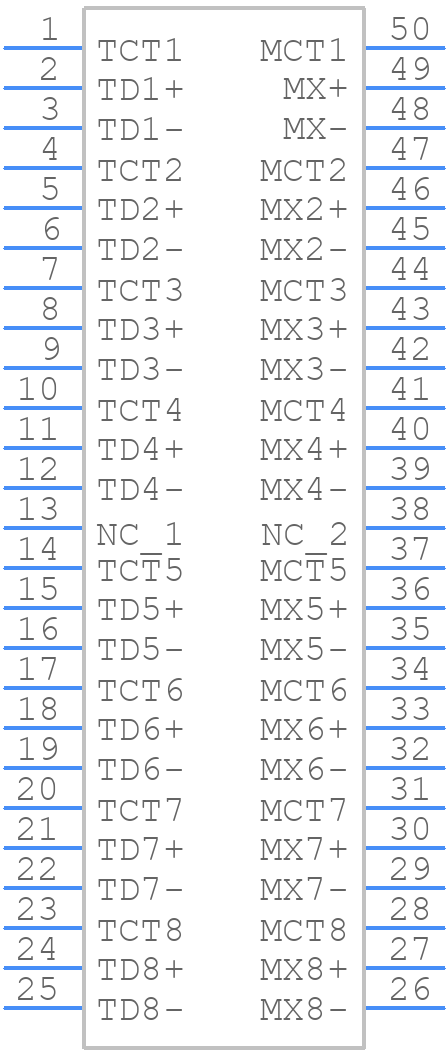

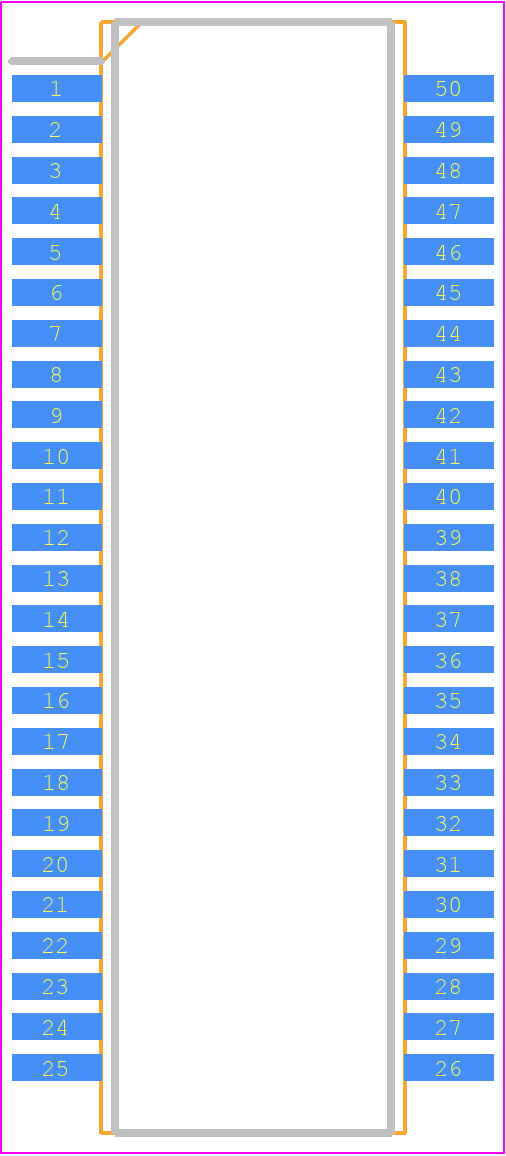

Use the download button to access the SM13143EL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM131,
or try a keyword search, such as Pulse/Datacom Transformers
