SM15H-TP - MCC

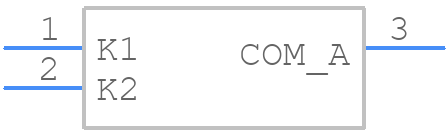

SM15H-TP Details

• Manufacturer Part Number:

  SM15H-TP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOT-23, 3 PIN

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Manufacturer:

  Micro Commercial Components

• YTEOL:

  6.9

• Breakdown Voltage-Min:

  16.7 V

• Clamping Voltage-Max:

  32 V

• Configuration:

  COMMON ANODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• Forward Voltage-Max (VF):

  1.2 V

• JESD-30 Code:

  R-PDSO-G3

• JESD-609 Code:

  e3

• Non-rep Peak Rev Power Dis-Max:

  500 W

• Number of Elements:

  2

• Number of Terminals:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Reference Standard:

  IEC61000-4-2

• Rep Pk Reverse Voltage-Max:

  15 V

• Reverse Current-Max:

  0.2 µA

• Reverse Test Voltage:

  15 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10
