- Part Number SM30T28AY
- Manufacturer STMicroelectronics
- Pin Count 2
- Part Category TVS Diode (Uni-directional)
- Package Category Other

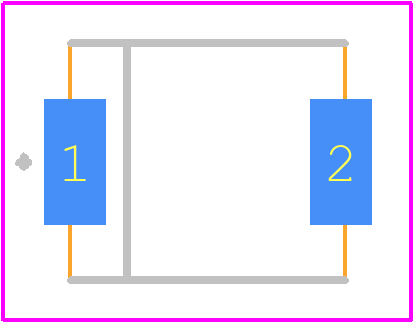

- Footprint Name Other - SM30TxxAY
- Released Date Feb 20, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
SM30T28AY Details
-
Manufacturer Part Number:
SM30T28AY
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DO-214AB
-
Package Description:
SMC, 2 PIN
-
Pin Count:
2
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Factory Lead Time:
53 Weeks, 1 Day
-
Manufacturer:
STMicroelectronics
