SM30T35CAY - STMicroelectronics

Description: STMicroelectronics SM30T35CAY, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB

Download SM30T35CAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SM30T35CAY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

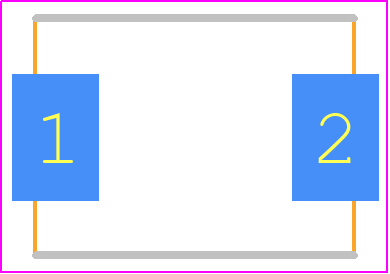

SM30T35CAY - STMicroelectronics PCB footprint - Other - Other - SMC_BD
click to zoom
3D Models
SM30T35CAY - STMicroelectronics - 3D model - Other - SMC_BD
click to zoom

SM30T35CAY Details

  • Manufacturer Part Number:

    SM30T35CAY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-214AB

  • Package Description:

    SMC, 2 PIN

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Additional Feature:

    MIL-STD-750

  • Breakdown Voltage-Max:

    36.9 V

  • Breakdown Voltage-Min:

    33.3 V

  • Breakdown Voltage-Nom:

    35.1 V

  • Clamping Voltage-Max:

    48.4 V

  • Configuration:

    SINGLE, 1 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    3000 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2, 4-4; ISO 7637-2

  • Rep Pk Reverse Voltage-Max:

    30 V

  • Reverse Current-Max:

    0.2 µA

  • Reverse Test Voltage:

    30 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL
