SM320F28335PTPMEP - Texas Instruments

SM320F28335PTPMEP Details

• Manufacturer Part Number:

  SM320F28335PTPMEP

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

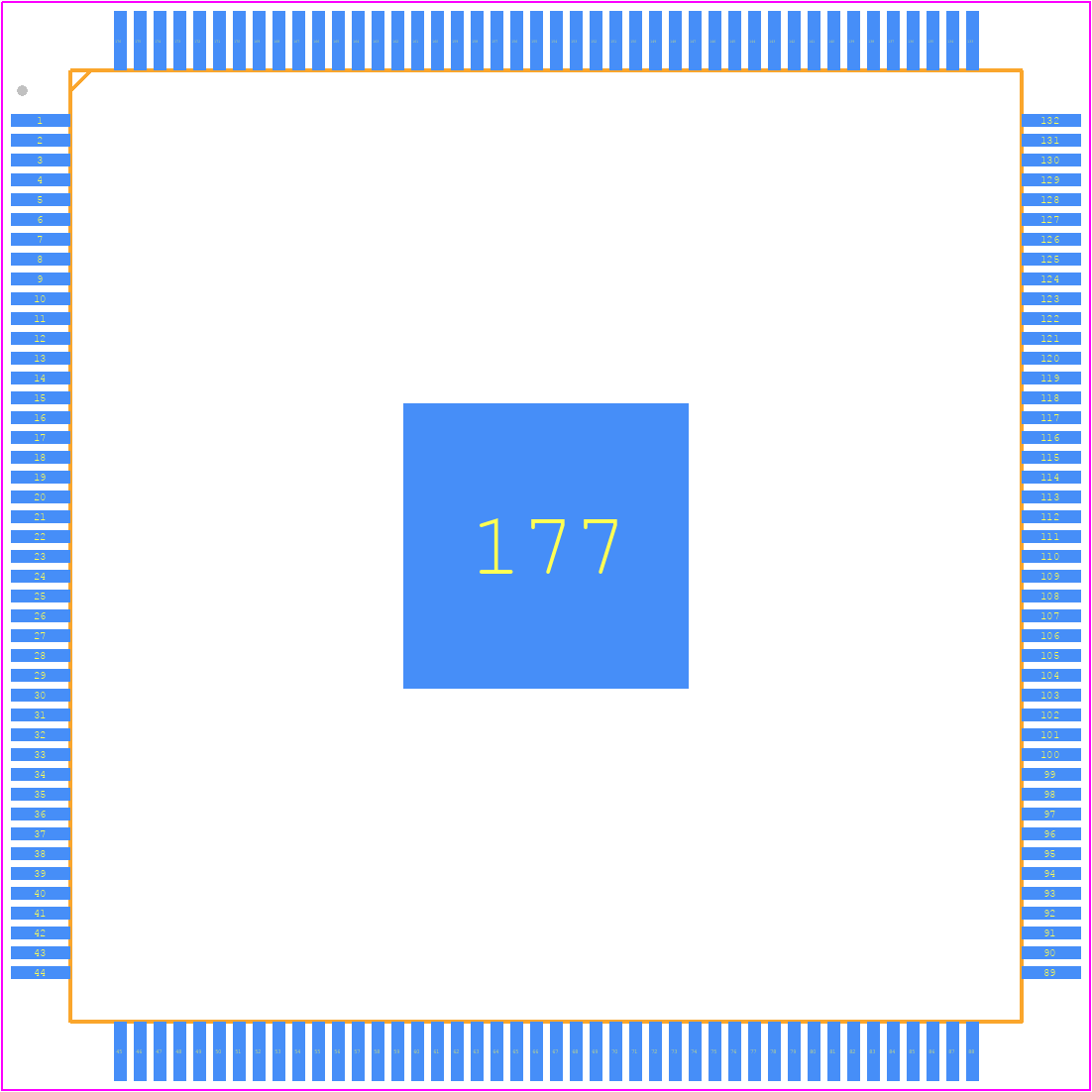

• Part Package Code:

  QFP

• Pin Count:

  176

• Country Of Origin:

  Philippines

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Has ADC:

  YES

• Address Bus Width:

  16

• Barrel Shifter:

  NO

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  C28X

• Clock Frequency-Max:

  100 MHz

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G176

• JESD-609 Code:

  e4

• Length:

  24 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  4

• Number of DMA Channels:

  6

• Number of External Interrupts:

  8

• Number of Terminals:

  176

• Number of Timers:

  13

• On Chip Data RAM Width:

  16

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP176,1.0SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• RAM (bytes):

  69632

• RAM (words):

  17408

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  315 mA

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, CONTROLLER
