TI recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, keeping the thermal pad connected to the ground plane and using thermal vias can help reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The maximum allowed voltage on the EN (enable) pin is 6V, which is higher than the recommended operating voltage of 3.3V or 5V. However, it's essential to ensure that the EN pin voltage does not exceed the maximum rating to prevent damage to the device.
While the SM34020APCM40 is not specifically designed for high-humidity environments, it can still be used in such conditions with proper precautions. Ensure that the device is properly sealed, and consider using conformal coating or potting to protect it from moisture.
To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and that there are no signs of overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM34020APCM40 Overview

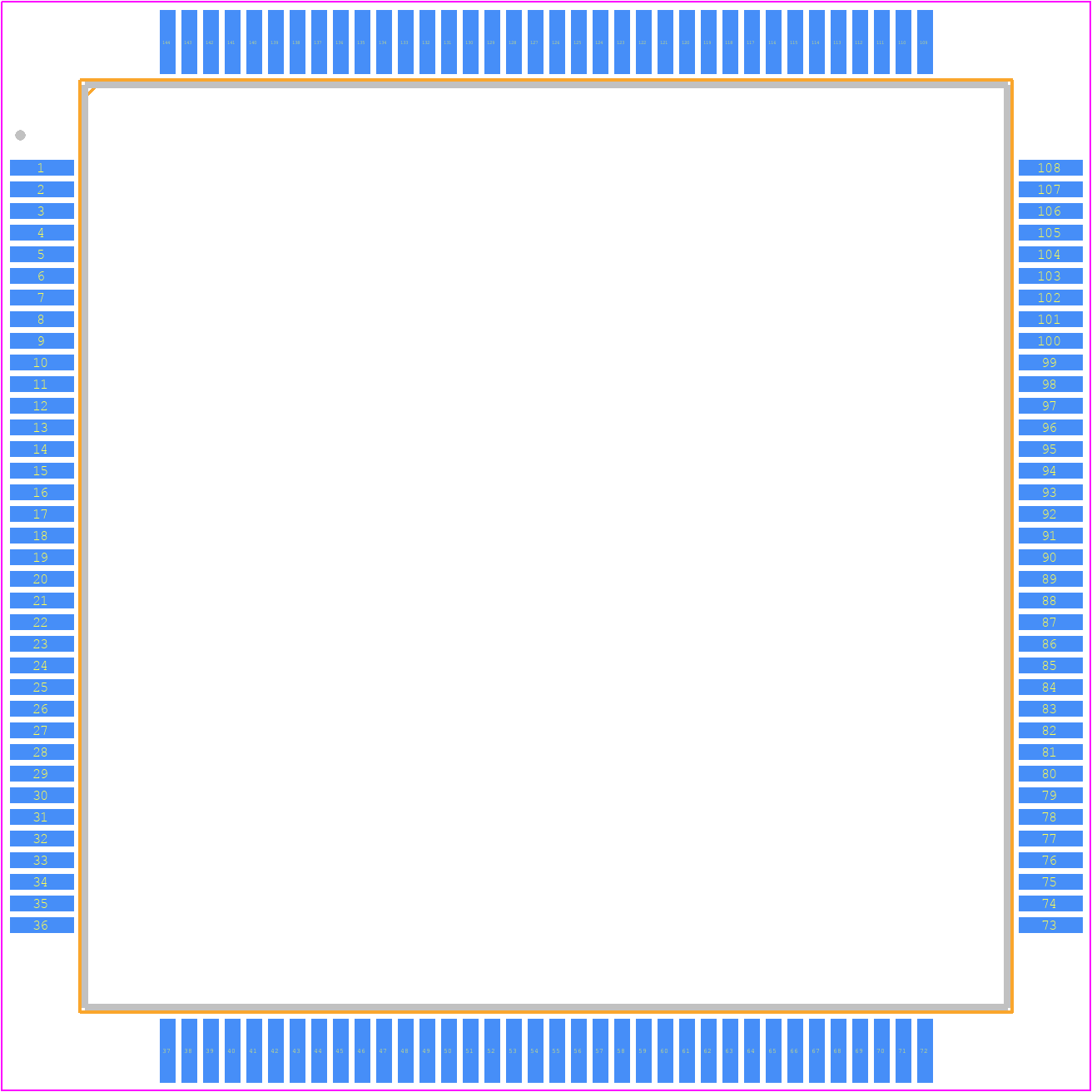

Use the download button to access the SM34020APCM40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM340,
or try a keyword search, such as Graphics Processors
