SM420391N/8 - ARK

Description: Red 1 0.39 Common Cathode Plugin Led Segment Display ROHS

Download SM420391N/8 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SM420391N/8 model

Email notifications will be applied after download.

Send part feedback

Symbol

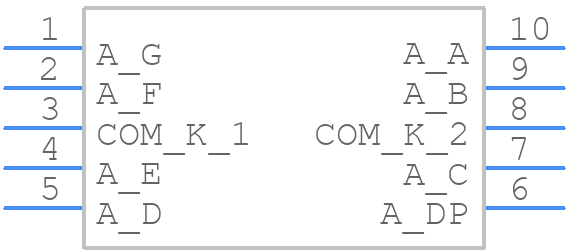

SM420391N/8 - ARK - PCB symbol

PCB Footprints

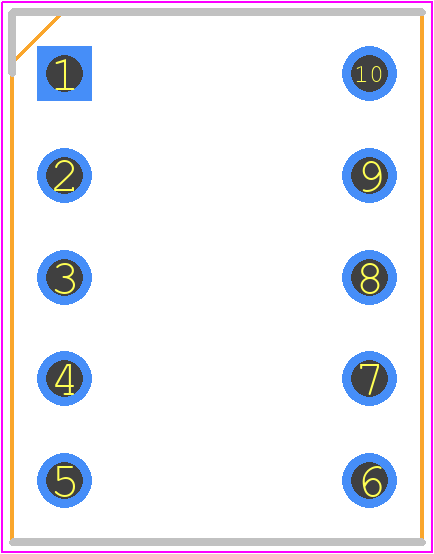

SM420391N/8 - ARK PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SM420391N/8

Datasheet Download Datasheet
Stock & Prices Price & Stock for SM420391N/8
Part Number SM420391N/8
Manufacturer ARK
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - SM420391N/8
Released Date Nov 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SM420391N/8 Details

Manufacturer Part Number:
SM420391N/8
Manufacturer:
ARK Microelectronics Co Ltd
