Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, low EMI, and high reliability.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines. Use a solder with a melting point below 220°C, and avoid excessive soldering temperatures or times. Inspect the solder joints for any signs of cold joints or defects.
The SM42P01EL has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a thermal pad or heat sink, and design the PCB to allow for adequate airflow. Avoid overheating the device, as it can lead to reduced performance and lifespan.
Handle the SM42P01EL with ESD-protective equipment, such as wrist straps, mats, or bags. Ground yourself before handling the device, and avoid touching the pins or sensitive components. Follow proper ESD handling procedures to prevent damage.
The SM42P01EL is designed to meet high reliability standards. Under normal operating conditions, it can last for millions of cycles. However, lifespan may vary depending on factors like operating conditions, temperature, and usage patterns. Consult Bourns' reliability data and application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM42P01EL Overview

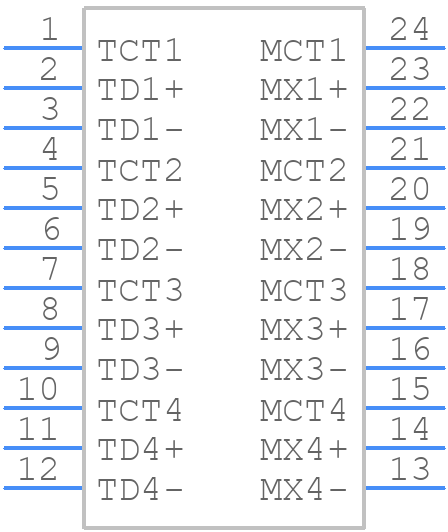

Use the download button to access the SM42P01EL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM42P,
or try a keyword search, such as Pulse/Datacom Transformers
