SM470R1B1MHKPS - Texas Instruments

SM470R1B1MHKPS Details

• Manufacturer Part Number:

  SM470R1B1MHKPS

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Pin Count:

  84

• ECCN Code:

  3A001.A.2.A

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES MINIMUM 1.71 V AT 48 MHZ

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  ARM7

• Clock Frequency-Max:

  10 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-CQFP-G84

• Length:

  13.81 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of I/O Lines:

  8

• Number of Serial I/Os:

  12

• Number of Terminals:

  84

• Number of Timers:

  13

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  220 °C

• Operating Temperature-Min:

  -55 °C

• PWM Channels:

  YES

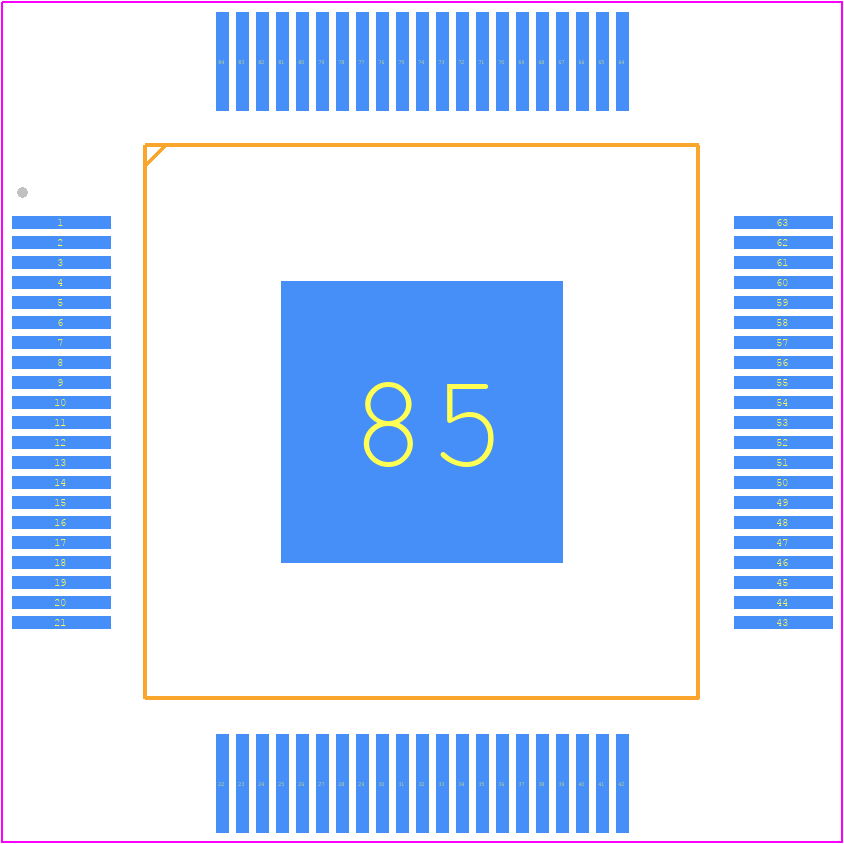

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  HFQFP

• Package Equivalence Code:

  HQFP84,.76SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  65536

• ROM (words):

  1048576

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.8 mm

• Speed:

  60 MHz

• Supply Current-Max:

  125 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  13.81 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
