Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
Bourns recommends derating the device's current rating according to the temperature derating curve provided in the datasheet, and ensuring good thermal management through proper heat sinking and airflow.
The SM51430EL is designed to withstand voltage stresses up to 150% of the rated voltage for a short duration (typically 100 ms). However, prolonged exposure to high voltage stresses can reduce the device's lifespan.
While the SM51430EL is designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB layout and component selection. However, the device's performance may degrade at higher frequencies due to increased losses and parasitic effects.
Common issues with the SM51430EL can be troubleshooted by checking for proper PCB layout, ensuring correct component values and tolerances, verifying input and output voltage and current ratings, and checking for signs of physical damage or wear.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM51430EL Overview

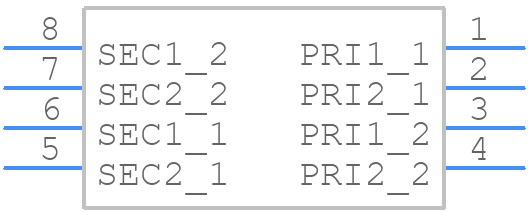

Use the download button to access the SM51430EL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM514,
or try a keyword search, such as Telecom Transformers
