For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to use thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
To ensure reliable operation across the full temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure that the device is properly soldered. Additionally, consider using a thermocouple or temperature sensor to monitor the device temperature.
Critical parameters to monitor during operation include input voltage, output voltage, output current, and device temperature. Monitoring these parameters can help prevent overheating, overvoltage, and overcurrent conditions that can affect device reliability.
To troubleshoot common issues, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, thermal design, and soldering. Use a thermal camera or thermocouple to monitor device temperature. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To prevent damage, store the devices in their original packaging or in a dry, ESD-protected environment. Handle the devices by the body, avoiding touching the pins or leads. Use ESD-protective materials and tools during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72295MA/NOPB Overview

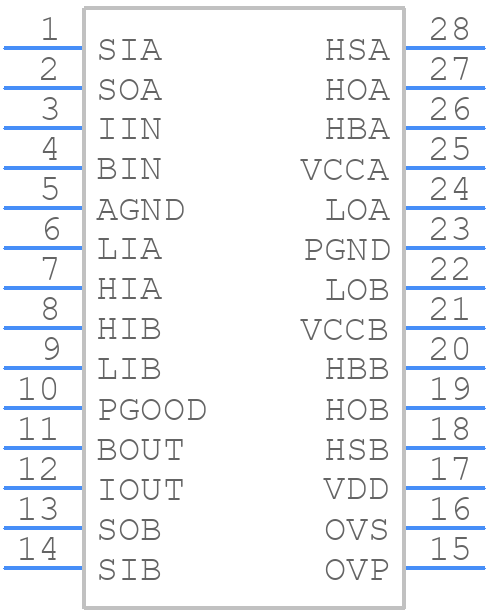

Use the download button to access the SM72295MA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM722,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
Suggested Parts
If you searched for SM72295MA/NOPB, you might also be interested in these parts:
