SM72375MME/NOPB - Texas Instruments

Description: Texas Instruments SM72375MME/NOPB Dual Comparator, Open Drain O/P, 0.3μs 2.7 → 15 V 8-Pin VSSOP

Download SM72375MME/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

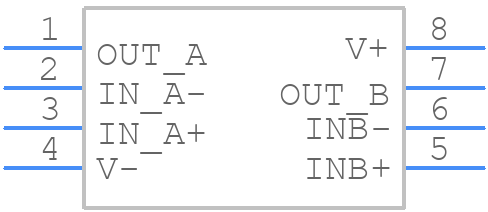

SM72375MME/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SM72375MME/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
SM72375MME/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

SM72375MME/NOPB Details

  • Manufacturer Part Number:

    SM72375MME/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    VSSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    13000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    10000 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

SM72375MME/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended operating conditions, including voltage, current, and temperature. Also, follow proper PCB design and layout guidelines to minimize thermal resistance and ensure reliable operation.
  • The critical timing parameters include the input rise and fall times, output delay, and propagation delay. These parameters are critical for ensuring reliable operation and should be carefully considered during design and layout.
  • ESD protection can be achieved through the use of ESD protection diodes, TVS diodes, or other ESD protection devices. It is recommended to follow proper ESD handling and protection procedures during device handling and assembly.
  • The recommended power sequencing and voltage ramp-up procedures involve slowly ramping up the input voltage to the recommended operating voltage, while ensuring that the input voltage is within the recommended range. This helps to prevent damage to the device and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SM72375MME/NOPB Overview

Use the download button to access the SM72375MME/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM723, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
