Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
Using a different input capacitor value than recommended can affect the device's performance, stability, and efficiency. It's essential to follow the recommended input capacitor value to ensure optimal performance and to avoid potential issues such as oscillation or instability.
To troubleshoot issues, start by verifying the input voltage, current, and temperature are within the recommended operating conditions. Check for any signs of physical damage, such as overheating or electrical overstress. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
The SM72442MTE/NOPB is a high-reliability device, but it's essential to follow Texas Instruments' guidelines for using the device in safety-critical applications. Ensure that the device is used within its recommended operating conditions, and consider implementing redundant or fail-safe designs to mitigate potential risks.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72442MTE/NOPB Overview

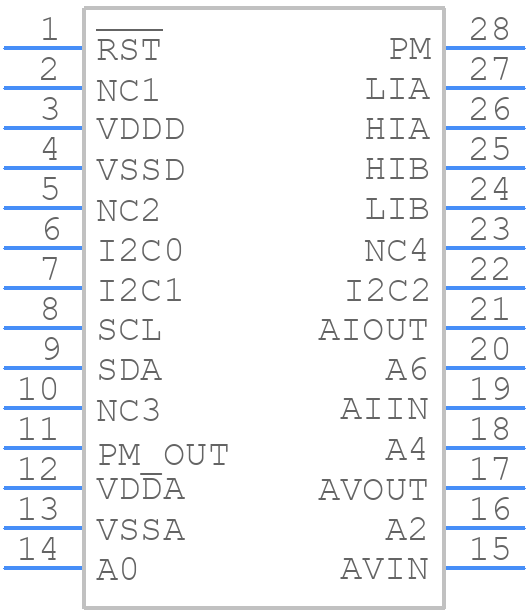

Use the download button to access the SM72442MTE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM724,
or try a keyword search, such as Power Management Circuits
