Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range (-40°C to 125°C), it's crucial to follow proper thermal design and layout practices. This includes providing adequate heat sinking, using thermal vias, and selecting components with suitable temperature ratings. Additionally, ensure that the device is operated within its specified voltage and current limits.
The critical timing parameters for the SM72445MT/NOPB include the input rise and fall times, output rise and fall times, and the minimum input pulse width. To ensure these parameters are met, it's essential to carefully design the input and output circuits, taking into account the device's internal capacitance and resistance. Additionally, use a high-speed op-amp with a suitable bandwidth and slew rate to drive the input signals.
The SM72445MT/NOPB has built-in ESD protection, but it's still essential to follow proper ESD handling and protection practices during manufacturing, testing, and assembly. This includes using ESD-safe materials, grounding wrist straps, and using ESD-protected workstations. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
The SM72445MT/NOPB requires a specific power sequencing to ensure proper operation. The recommended power sequencing is to apply the input voltage (VIN) before the enable signal (EN). Additionally, ensure that the input voltage is stable and within the specified range before applying the enable signal. Failure to follow the recommended power sequencing may result in device malfunction or damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72445MT/NOPB Overview

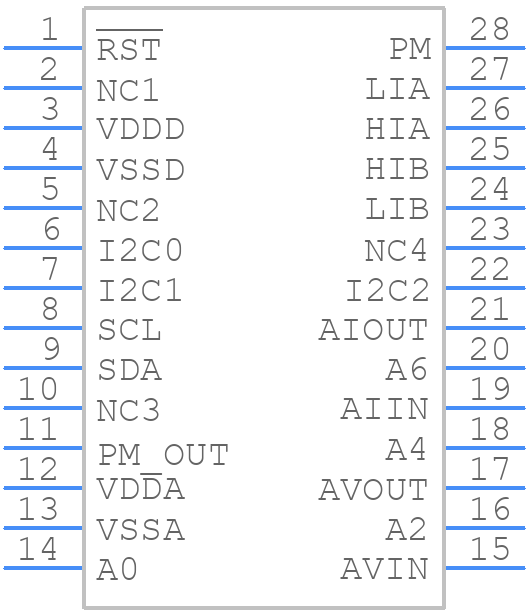

Use the download button to access the SM72445MT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM724,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
