Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths. Additionally, ensure that the input and output capacitors are placed close to the device.
The choice of input and output capacitors depends on the specific application and operating conditions. Generally, use low-ESR capacitors with a high ripple current rating. For the input capacitor, a 10uF to 22uF ceramic capacitor is recommended, while for the output capacitor, a 10uF to 47uF ceramic capacitor is suitable. Consult the datasheet and application notes for more information.
The SM72480SD-105/NOPB is rated for operation up to 125°C ambient temperature. However, it's essential to consider the thermal design and ensure that the device is properly cooled to maintain a safe operating temperature. Consult the thermal design guidelines in the datasheet and application notes.
To ensure EMC compliance, follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths and widths, and using shielding and filtering components as necessary. Additionally, consult the datasheet and application notes for specific guidance on EMC compliance.
The recommended input voltage range for the SM72480SD-105/NOPB is 4.5V to 18V. Operating outside this range may affect the device's performance and reliability. Consult the datasheet for more information on input voltage range and tolerance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72480SD-105/NOPB Overview

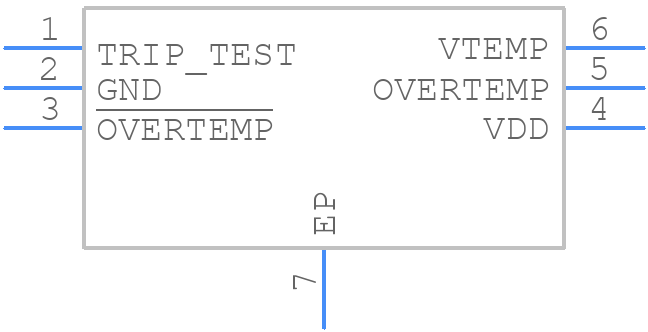

Use the download button to access the SM72480SD-105/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM724,
or try a keyword search, such as Temperature Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
