Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing signal trace lengths and loops.
The SM72485MME/NOPB is rated for operation up to 125°C. To ensure reliable operation in high-temperature environments, ensure proper thermal management, such as using a heat sink, and follow the recommended operating conditions and derating guidelines in the datasheet.
While the SM72485MME/NOPB can operate with input voltages between 2.7V and 5.5V, using a different input voltage may affect the device's performance, power consumption, and output voltage regulation. Consult the datasheet for specific guidelines and consider the impact on your design.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors. Ensure that the output voltage is within the specified range, and the feedback resistors are correctly configured. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
The SM72485MME/NOPB is designed to minimize EMI and RFI. However, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components as needed. Consult the datasheet and application notes for specific guidance on EMI and RFI mitigation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72485MME/NOPB Overview

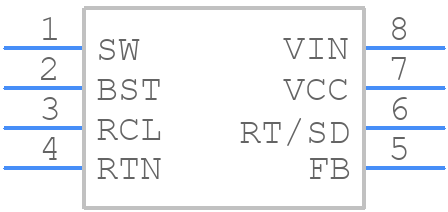

Use the download button to access the SM72485MME/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM724,
or try a keyword search, such as Switching Regulator or Controllers
