Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, keeping the thermal pad connected to the ground plane can help reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or throttling if necessary.
Texas Instruments recommends using low-ESR ceramic capacitors with a value of 10uF to 22uF for the input and output capacitors. The capacitors should be placed as close to the device as possible to minimize parasitic inductance and ensure stable operation.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and look for any signs of oscillation or noise. If the issue persists, consult the datasheet and application notes for guidance on adjusting the compensation network or seeking further support from Texas Instruments.
Yes, the SM74101SDX/NOPB can be used in battery-powered applications. However, it's essential to consider the device's quiescent current and power consumption to ensure that it meets the application's power budget. Additionally, consider using power-saving modes or low-power modes to minimize power consumption during idle periods.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM74101SDX/NOPB Overview

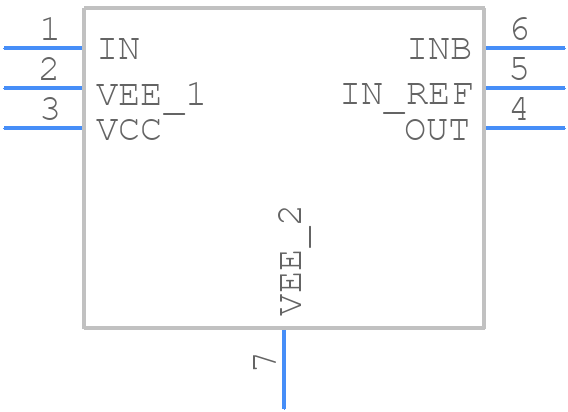

Use the download button to access the SM74101SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM741,
or try a keyword search, such as MOSFET Drivers
