SMA-JR-P1-S footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

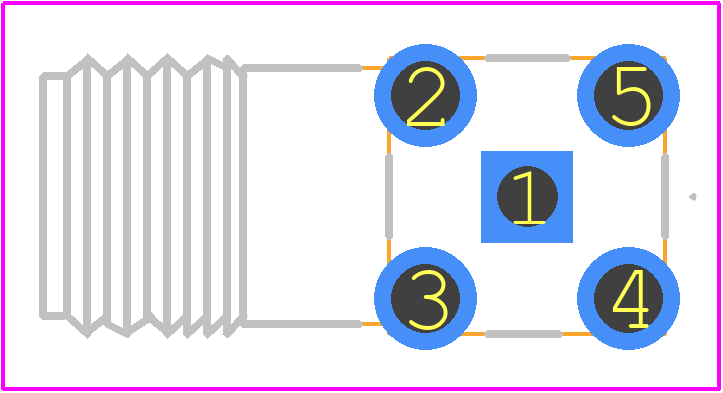

SMA-JR-P1-S - TE Connectivity PCB footprint - Other - Other - SMA-JR-P1-S-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SMA-JR-P1-S
Part Number SMA-JR-P1-S
Manufacturer TE Connectivity
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - SMA-JR-P1-S-6
Released Date Oct 4, 2023
Last Modified Date Oct 5, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

SMA-JR-P1-S Details

Manufacturer Part Number:
SMA-JR-P1-S
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
TE Connectivity
YTEOL:
0
Connector Type:
RF SMA CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED
Coupling Type:
THREADED

SMA-JR-P1-S Frequently Asked Questions (FAQs)

The recommended torque for the SMA connector is 0.5-0.7 Nm (5-7 in-lbs).
Yes, the SMA-JR-P1-S connector is suitable for outdoor use, as it is designed to meet the requirements of IP67 (dust and water resistance).
The maximum operating frequency of the SMA-JR-P1-S connector is up to 18 GHz.
Yes, the SMA-JR-P1-S connector is designed to handle high-power applications, with a maximum power rating of 500 W.
Yes, the SMA-JR-P1-S connector is designed to be compatible with other SMA connectors from different manufacturers, as it meets the industry-standard SMA interface specification.
