The recommended land pattern for SMAJ58CA/TR7 is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
Yes, SMAJ58CA/TR7 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the component's performance and reliability may degrade at temperatures above 125°C, so careful consideration should be given to the specific application requirements.
Handle the SMAJ58CA/TR7 component by the body, avoiding touching the leads or the component's electrical contacts. Use a vacuum pickup or tweezers to handle the component, and avoid applying excessive force or pressure. During rework, use a low-temperature soldering iron and a solder with a melting point below 260°C to avoid damaging the component.
The recommended soldering profile for SMAJ58CA/TR7 is a peak temperature of 240°C ± 5°C, with a dwell time of 3-5 seconds. The soldering process should be done in a nitrogen atmosphere to minimize oxidation and ensure reliable joints.
Yes, SMAJ58CA/TR7 is rated for operation in humid environments, with a moisture sensitivity level (MSL) of 1. However, it's still important to follow proper handling and storage procedures to prevent moisture absorption, and to ensure that the component is properly sealed or coated to prevent moisture ingress during operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMAJ58CA/TR7 Overview

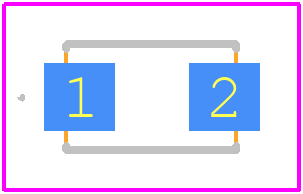

Use the download button to access the SMAJ58CA/TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMAJ5,
or try a keyword search, such as Transient Suppressors
