Description:hFE, 100-300; Low VCE(sat), ≤ 0.4 V; Simplifies Circuit Design; Reduces Board Space; Reduces Component Count; Available in 8 mm, 7-inch/3,000 Unit Tape and Reel; Device Marking: MBT3946DW1T1 = 46; Pb-Free Packages are Available; S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to an internal copper plane or a thermal relief pattern.
Ensure that the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement a thermal management system, such as a heat sink or fan, to keep the device temperature below the maximum rating. Monitor the device's thermal performance and adjust the system design as needed.
The SMBT3946DW1T1G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Yes, the SMBT3946DW1T1G is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards, such as AEC-Q100 or ISO 26262.
Follow the recommended soldering profile: peak temperature of 260°C, with a maximum time above 217°C of 30 seconds. Use a solder with a melting point above 217°C, and ensure that the device is not exposed to temperatures above 260°C for more than 10 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SMBT3946DW1T1G Overview

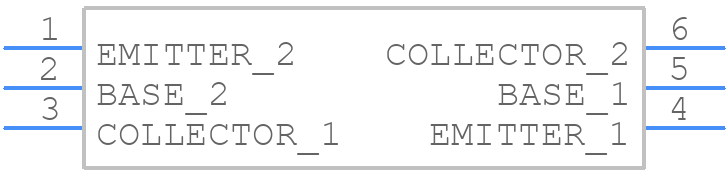

Use the download button to access the SMBT3946DW1T1G schematic symbol, PCB footprint, and 3D model.
